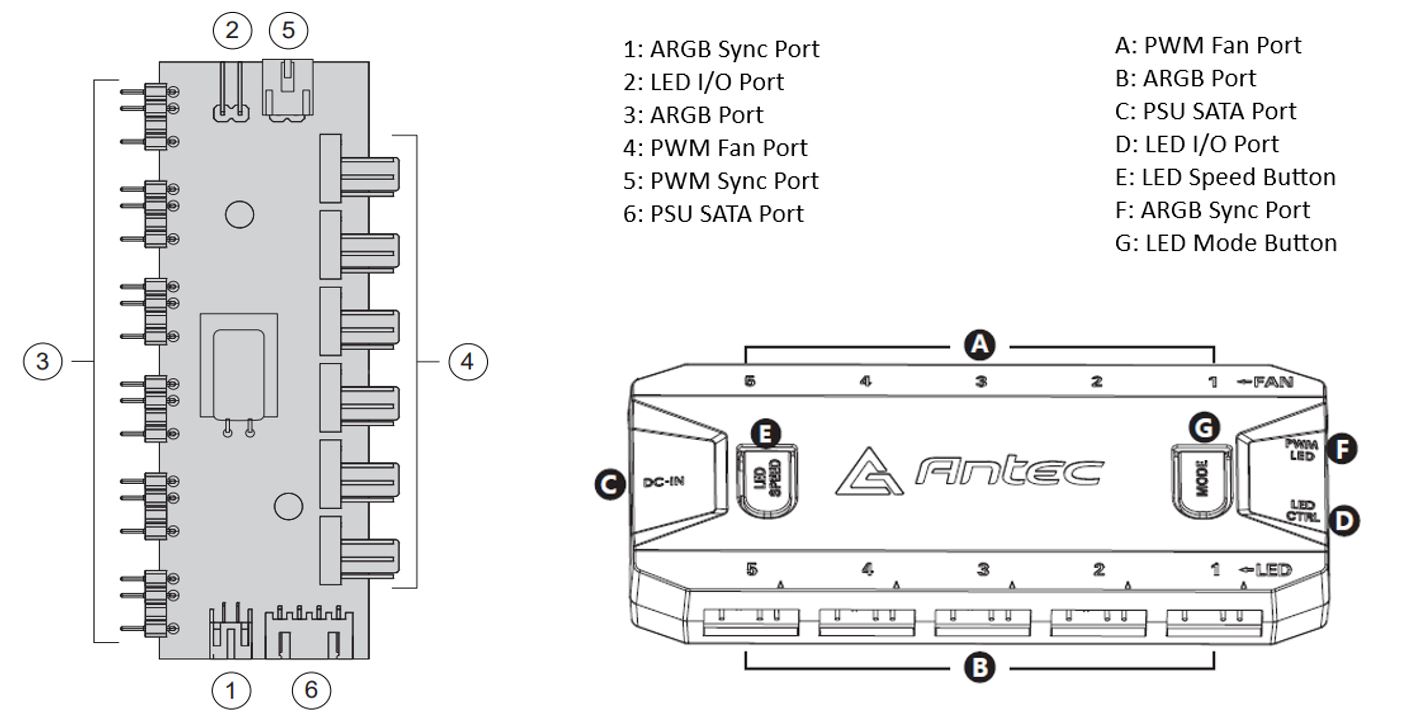

• 1. Connect 1 to B and 5 to A
  • 2. Hold G for 2~3 seconds to sync the built-in hub with the Prizm controller.
  • 3. Press G to change the lights.


If you want to sync both hub and controller with motherboard, please follow this installation instead:

  • 1. Connect 1 to B and 5 to A
  • 2. Connect the sync cable* to F and the other ends to motherboard.
  • 3. Hold G for 2 seconds to sync hub and controller with motherboard.
  • 4. Press G to change the lights.

*Remember to connect both 6 and C to the PSU SATA ports for powering on.

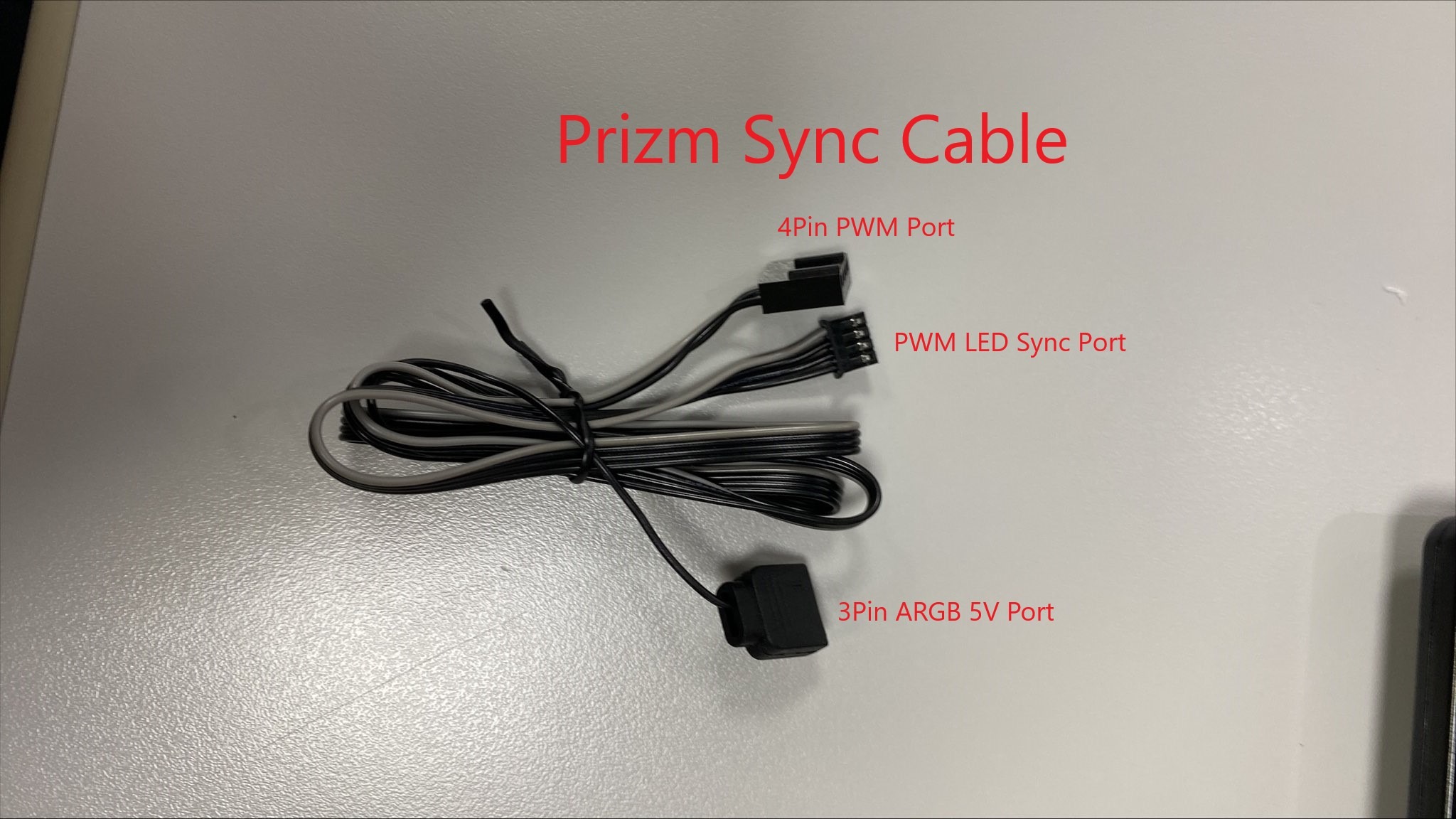

*This is the sync cable:
