How to Remove the Front Panel for the P280 Print

Modified on: Thu, Jan 8, 2015 at 11:01 AM

Remove the side panels for the case, both left and right, to access the inside of the case.

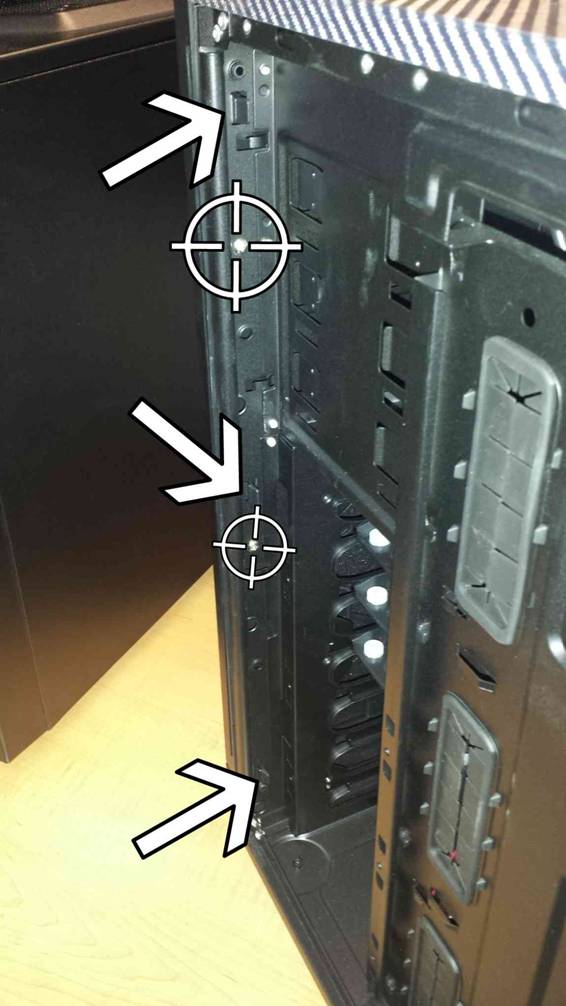

On this photo, you can see I marked the plastic tabs with arrows and cross-hair for the screws

There are 2 screws on the left side and 2 on the right, remove these screws first before releasing the plastic tabs that are marked with the arrow.
Once you’ve released the tabs , just pull the front panel towards the front and there will be another screw that has a black wire, this is the grounding wire for the front port assembly.

Remove the screw and re-attach them back once you’ve replaced the front panel.
